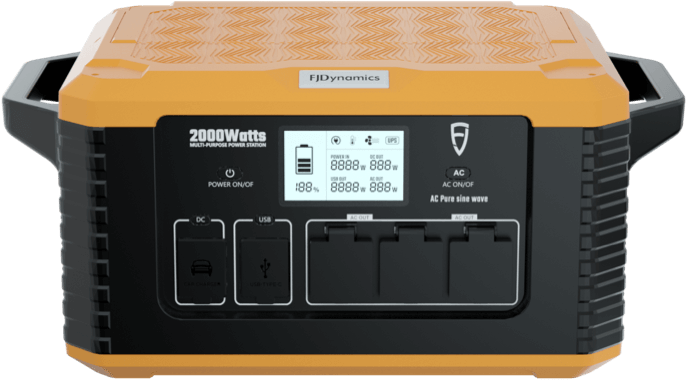

Portable handle
Power switch
DC output switch
USB output switch
LCD screen
AC output switch
Dust cover
Portable handle
Power switch
DC output switch
USB output switch
LCD screen
AC output switch
Dust cover

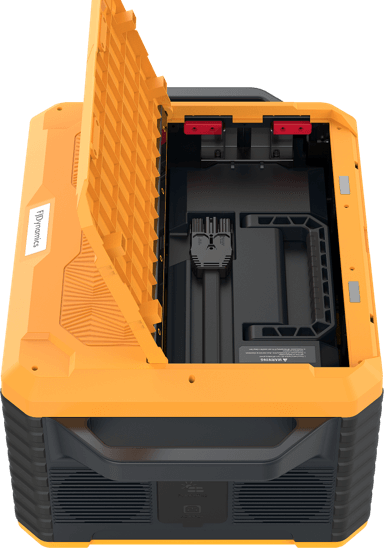

Upper cover of batterycompartments
Battery fixed position
Battery compartments
Cable
Interface
Handle
Switch
Power level indicator switch
LCD screen

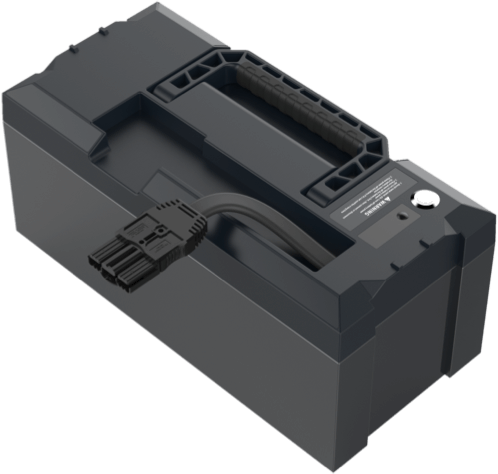

Battery plugger
Dimension | 463×369×262 mm (Add the total length of handles:574mm) |
Net Weight | 27kg |
Rated Power | 2000W |
Rated Capacity | 2264.4Wh |
Standard Capacity | 3.7V/612000mAh |
Overload Protection | 2180 80W |
Battery | Automotive battery, recharging independetly |
Charging Temperature | 0~45℃ |
Working Temperature | -15~45℃ |
Waterproof Level | IP54 (Battery Pack) |
Frequency Switch Method | Auto (50/60Hz) / Manual |
Recharge Ways | 1200W Rated Wall Outlet 2h/ 66W Max Car Oulet 36h / 600W Max PV Output 4-5h/ Electric Generator Output (rated power up to 1700W, non-loaded) |
AC Output | 110V±10%, 50/60Hz, 220V±10%/50Hz (Offline UPS) |
USB Output | QC 3.0/18W |
Type-C Output | PD 60W |
Cigarret Lighter Output | 14V/8A |
DC55*2.5 Output | 14V/8A |
Total Output Power of Cigarret Lighter and DC55*2.5 | 10A (max) |
Output Waveform | Pure sine wave |
US/JP | 96-130V (Can charge products directly) |
EU | 200-260V (Can charge products directly) |
