FJD RTK base station is used to provide radio RTK correction signal, to achieve centimeter level accuracy of the positioning and navigation system. It correct GNSS signal to achieve 2.5cm accuracy of positioning. For FJDynamics' product, it can be equipped with autosteering kit for precise agriculture or with 3D excavator guidance system for digital construction.
  • Centimeter-level
    3D Positioning
  • Global Signal
    Coverage
  • Automated Channel
    Detection
  • Quick
    Setup
  • Modular
    Design
  • Removable
    Battery
Centimeter-level 3D Positioning
Centimeter-level 3D Positioning
Provides real-time differential information for various machines and realizes centimeter-level 3D positioning and precise orientation, covering a radius of 5km where there is no interference or shield.
Global Signal Coverage
It receives signals from 16 frequency bands of 5 satellite navigation systems, including GPS, GLONASS, Beidou, GALILEO and QZSS.
Automated Channel Detection
With built-in anti-interference and high-gain antenna and high-performance receiver, it is able to receive more satellite signals through automated channel detection, and reduce user operations.
Quick Setup
IP65 industrial protection is suitable under various outdoor operating environmental conditions. Rapid base station setup can be realized so long as the right location is selected.
Modular Design
Base station module realizes base station positioning.
Bracket realizes unobstructed working environment and ensures the accuracy and strength of signals.
Antenna stand module (optional) secures stronger positioning signals with the support of external antenna.

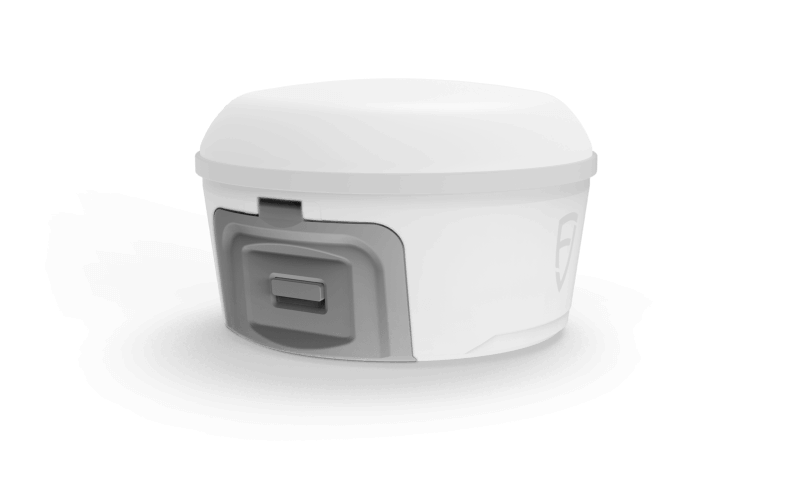

Removable Battery

Dual-battery provides 12-hour duration and AC power
supply supports hot plugging.
Battery can be replaced without powering off.
Continuous operation is guaranteed.
Removable Battery

For Precision Agriculture

FJD AT1 Autosteering Kit
FJD AT1 Autosteering Kit
Provides stable RTK data for mobile devices with radio module and allows agricultural machinery to achieve centimeter-level positioning accuracy.
FJD AL01 3D Land Leveling System
FJD AL01 3D Land Leveling System
Provides centimeter-level accuracy for farmland leveling, helping optimize water management, improve productivity, and increase yields.

Specification

Satellite and Positioning
Satellite Tracking 624 channels available.
Support complete constellation of Beidou.
Can be upgraded to Beidou III satellite.
Tracking Features BDS: B1/B2, (Can be upgraded to B3)
GPS: L1/L2
GLONASS: L1/L2
GALILIEO: E1/E5B
QZSS: L1/L2
RTK Positioning Accuracy Plane: 1cm+1ppm
Elevation: 1.5cm+1ppm
Single Point Positioning Plane: 1.5m
Elevation: 2.5m
DGPS Accuracy Plane: 0.4m
Elevation: 0.8m
Positioning Update Rate 1Hz, 2Hz, 5Hz, 10Hz and 20Hz
Initialization Time <10 seconds
Recapture <1 second
Initialization Reliability >99.9%
Differential Data Transport Format RTCM v3.0/3.2
Battery Features Double battery compartments,
10400mAh 7.4V (single battery 5200 mAh)
Mobile station lasts up to 12 hours,
hot plugging supported
Power Adapter Input: AC 100-240V 50/60Hz Output: 12V 5A
Battery Charger QC3.0 fast charge
Physical Properties
Dimensions Φ178*110mm
Material Aluminum alloy
Waterproof and Dustproof IP65
Working Temperature -40℃ - 65℃
Storage Temperature -50℃ - 75℃
